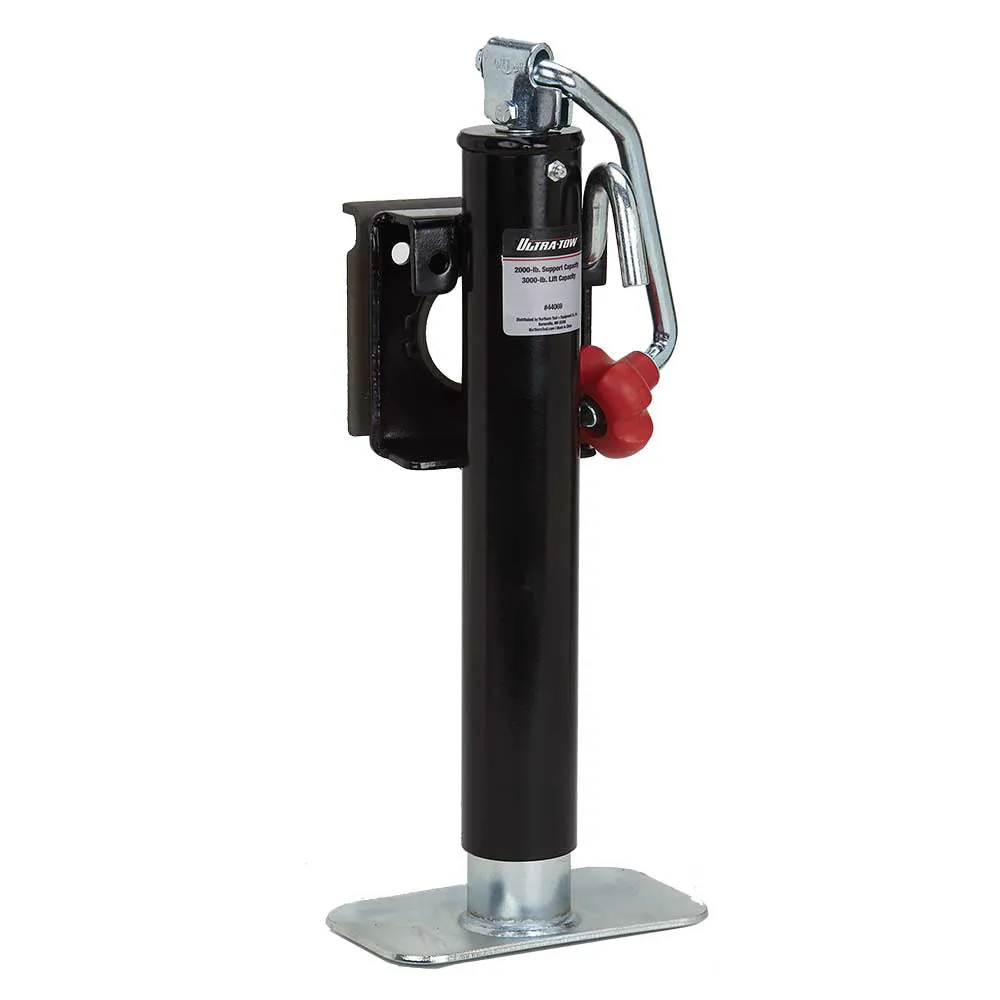

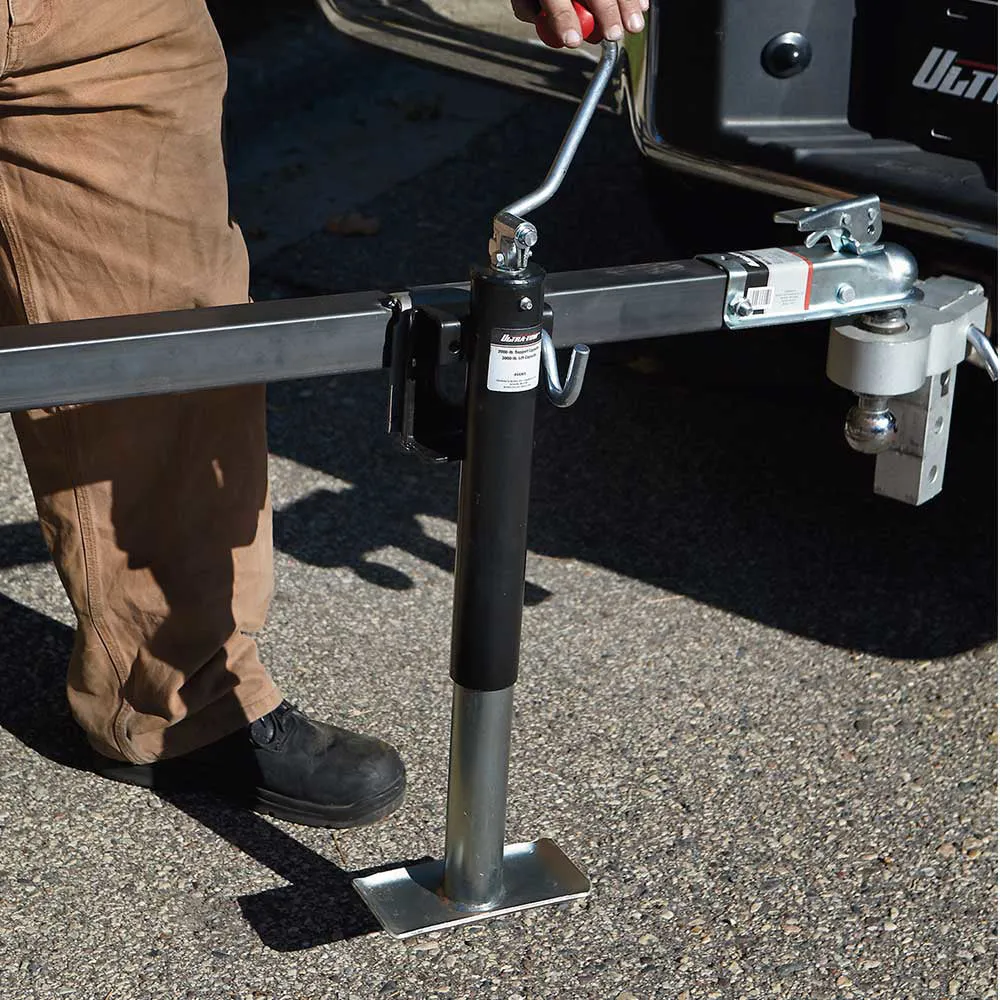

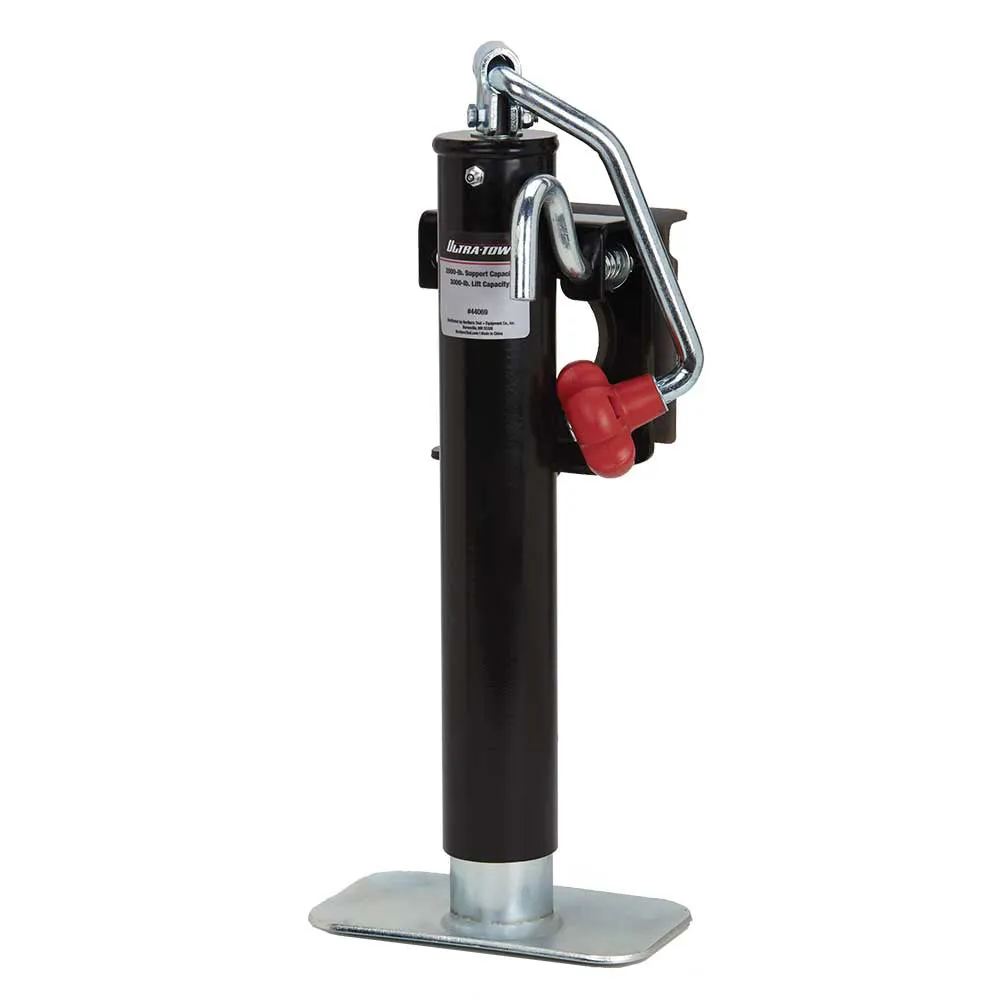

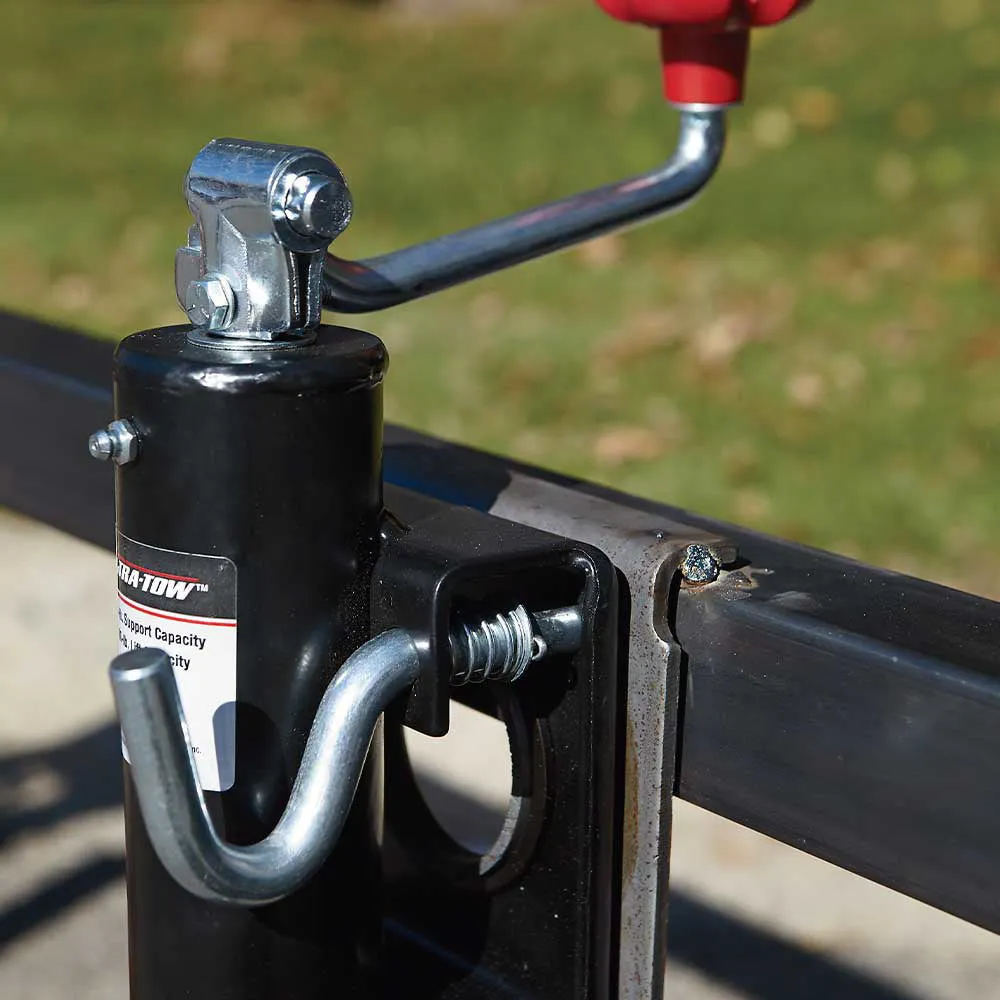

This Ultra-Tow® Snap Ring Sidewind Swivel Jack is a reliable, easy-to-use 2 1/4in. dia. tube jack with a deep-seated snap ring that provides side load support. The large 1/2in. pull pin activates the swivel mechanism, allowing the jack to swing up and out of the way when not in use. 2000-lb. lift capacity; 3000-lb. support capacity. 11 1/4in. retracted length; 21 1/4in. extended length.

Features

Includes: (1) Snap ring swivel jack

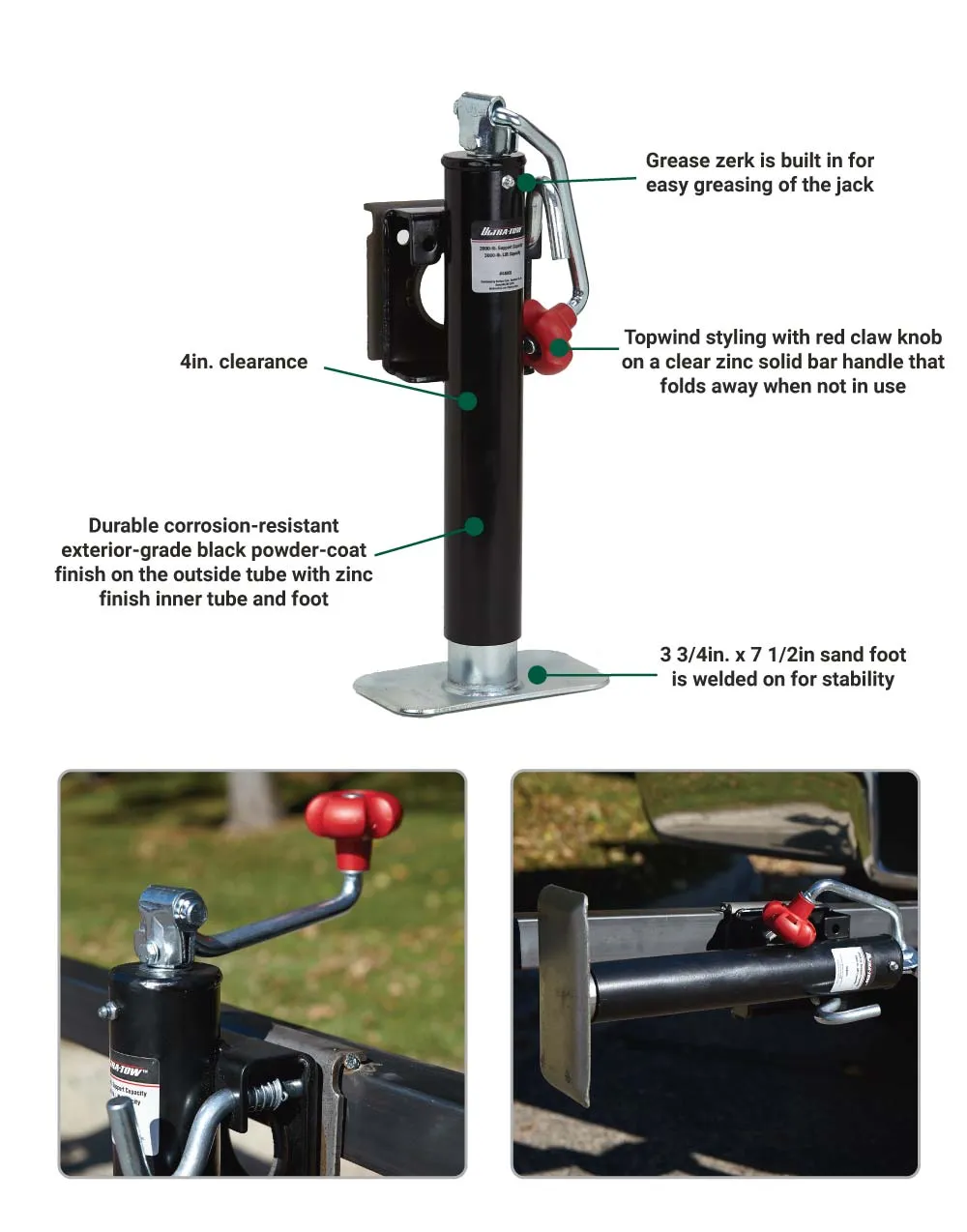

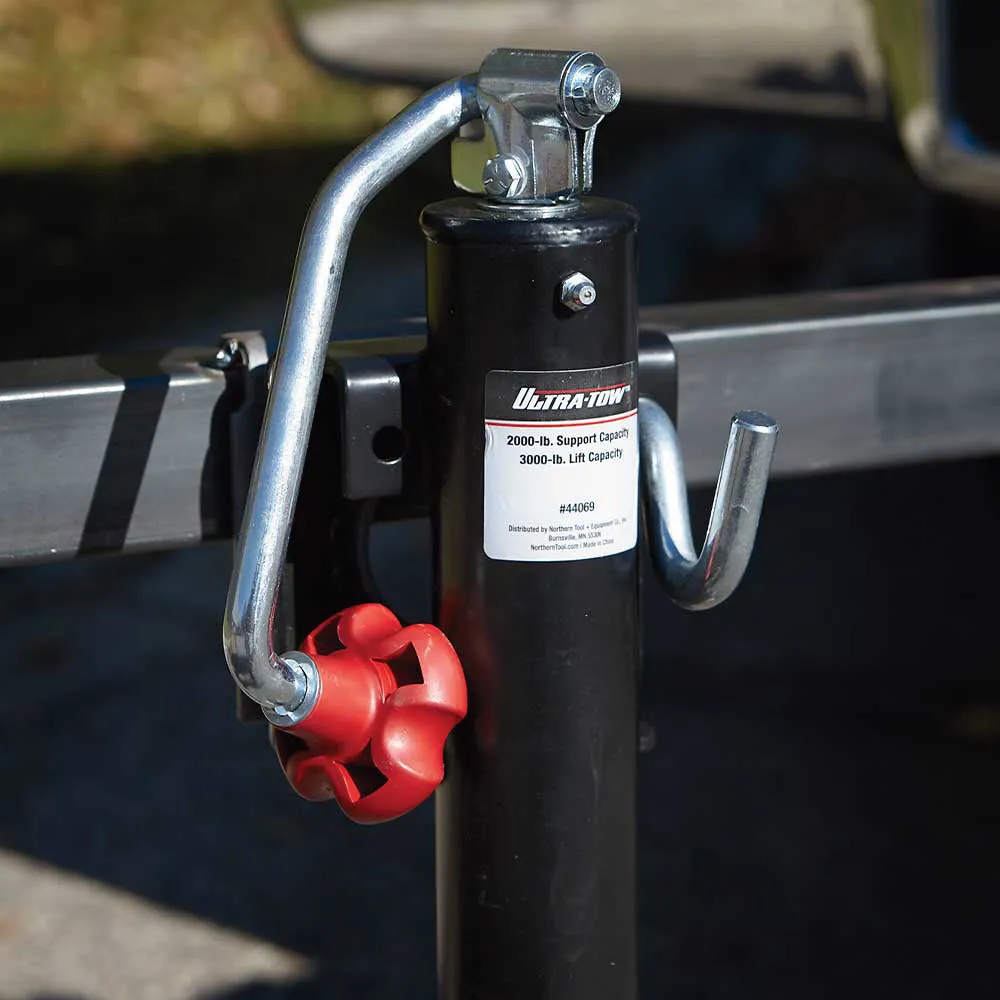

Topwind styling with red claw knob on a clear zinc solid bar handle that folds away when not in use
Grease zerk is built in for easy greasing of the jack
3 3/4in. x 7 1/2in. sand foot is welded on for stability
Durable, corrosion-resistant exterior-grade black powder-coat finish on the outside tube with zinc finish inner tube and foot
Weld-on design for a permanent solution
4in. clearance
A=Retracted (11 1/4in.), B=Extended (21 1/4in.), C=Clearance (4in.) (see corresponding diagram)

Specifications

Equipment Type	Swivel Trailer Jack
Clearing Height	4 In. To Jack Top
Dry Weight	13.1 Lbs
Ground Support	Foot Pad
Jack Type	Round Tube (sidewind Crank)
Length	10 In. Travel; 11-1/4 In. Retracted; 21-1/4 In. Extended
Lift Range	2,000 Lbs
Mounting	Weld-on
Support Capacity	3,000 Lbs
